DM MC6 Module (Dummy Membrane)

The DM_MC6 Module is an input module for connecting the voltage and current electrodes to the VCC MC2, VCC MC6, VCC MC8 and all expandable instruments. The DM MC6 is a small, shielded unit that should be mounted close to individual Ussing chambers and is recommended for use with both our EasyMount...
SKU: DM_MC6
Product Type: Accessories
// Zero Price Product Handler for HubSpot Quote Integration document.addEventListener('DOMContentLoaded', function() { console.log('Zero price handler loaded'); // Initialize HubSpot forms immediately function initHubSpotForms() { console.log('Checking for HubSpot...'); // Check if HubSpot is loaded if (typeof hbspt !== 'undefined' && hbspt.forms) { console.log('HubSpot found, initializing forms...'); const formContainers = document.querySelectorAll('.hs-form-frame[data-form-id]'); console.log('Found form containers:', formContainers.length); formContainers.forEach(container => { const formId = container.getAttribute('data-form-id'); const portalId = container.getAttribute('data-portal-id'); const productTitle = container.getAttribute('data-product-title'); console.log('Creating form:', formId, portalId); // Create the form hbspt.forms.create({ region: "na2", portalId: portalId, formId: formId, target: container, onFormReady: function(form) { console.log('Form ready!'); // Hide fallback button const fallbackBtn = document.querySelector('.button-quote-request'); if (fallbackBtn) { fallbackBtn.style.display = 'none'; } }, onFormSubmit: function(form) { console.log('Form submitted'); } }); }); } else { console.log('HubSpot not loaded yet, retrying...'); // Retry after a delay setTimeout(initHubSpotForms, 1000); } } // Start initialization initHubSpotForms(); // Also try when window fully loads window.addEventListener('load', function() { setTimeout(initHubSpotForms, 500); }); });
Regular price
$218.00
Regular price
Sale price
$218.00
// Zero Price Product Handler for HubSpot Quote Integration document.addEventListener('DOMContentLoaded', function() { console.log('Zero price handler loaded'); // Initialize HubSpot forms immediately function initHubSpotForms() { console.log('Checking for HubSpot...'); // Check if HubSpot is loaded if (typeof hbspt !== 'undefined' && hbspt.forms) { console.log('HubSpot found, initializing forms...'); const formContainers = document.querySelectorAll('.hs-form-frame[data-form-id]'); console.log('Found form containers:', formContainers.length); formContainers.forEach(container => { const formId = container.getAttribute('data-form-id'); const portalId = container.getAttribute('data-portal-id'); const productTitle = container.getAttribute('data-product-title'); console.log('Creating form:', formId, portalId); // Create the form hbspt.forms.create({ region: "na2", portalId: portalId, formId: formId, target: container, onFormReady: function(form) { console.log('Form ready!'); // Hide fallback button const fallbackBtn = document.querySelector('.button-quote-request'); if (fallbackBtn) { fallbackBtn.style.display = 'none'; } }, onFormSubmit: function(form) { console.log('Form submitted'); } }); }); } else { console.log('HubSpot not loaded yet, retrying...'); // Retry after a delay setTimeout(initHubSpotForms, 1000); } } // Start initialization initHubSpotForms(); // Also try when window fully loads window.addEventListener('load', function() { setTimeout(initHubSpotForms, 500); }); });

Details

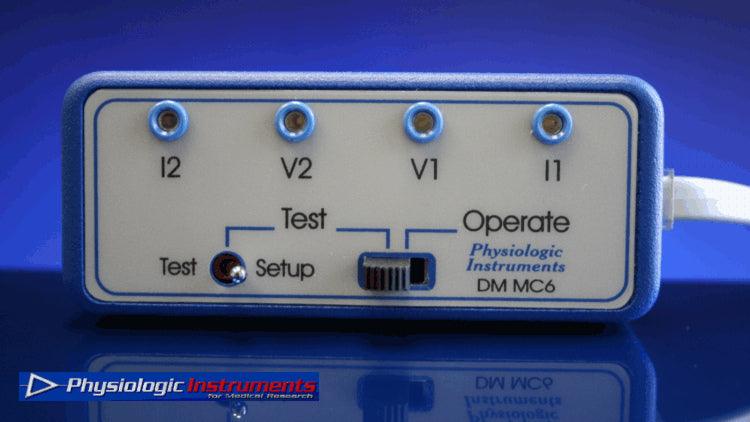

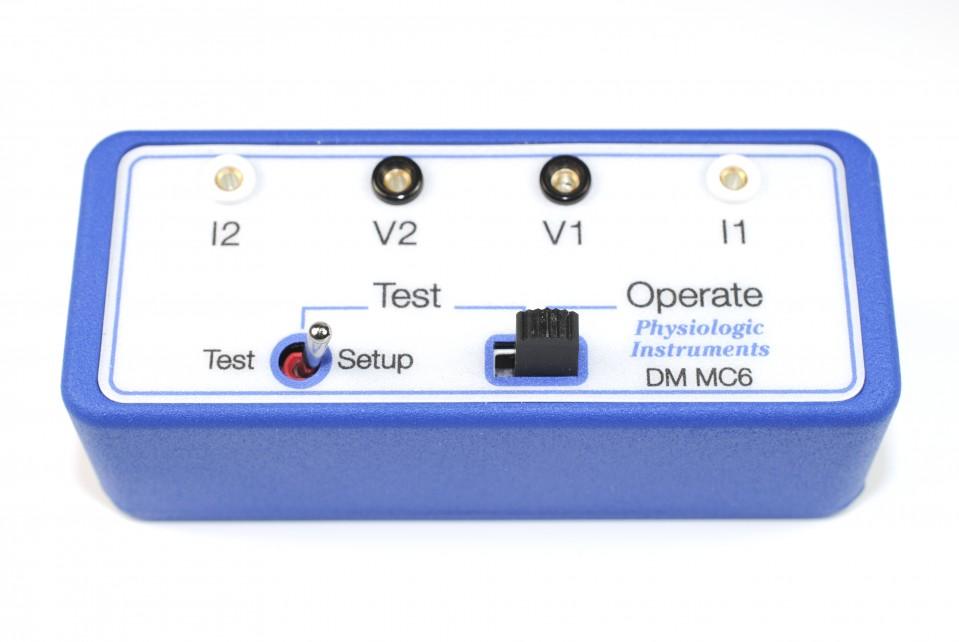

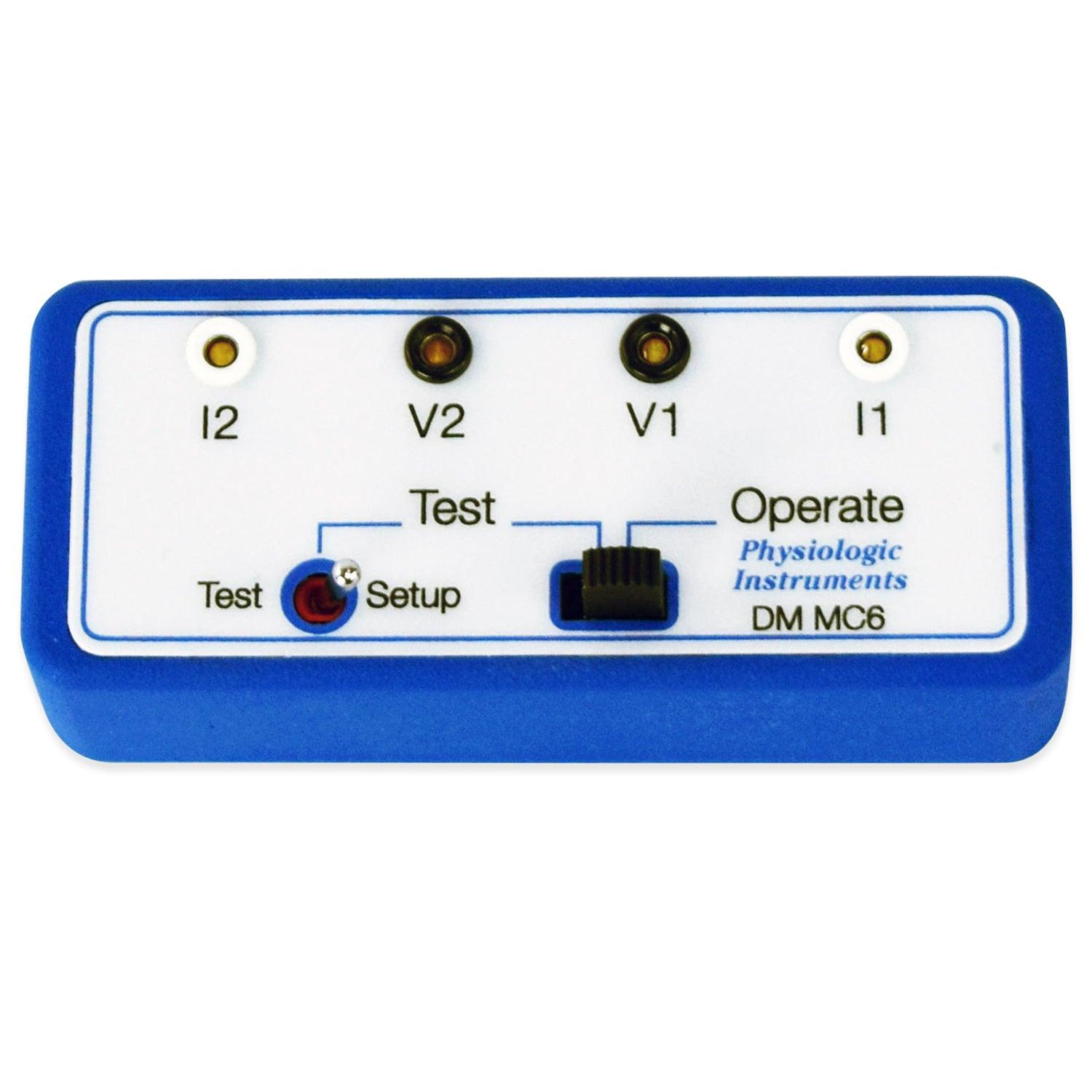

The DM_MC6 Module is an input module for connecting the voltage and current electrodes to the VCC MC2, VCC MC6, VCC MC8 and all expandable instruments. The DM MC6 is a small, shielded unit that should be mounted close to individual Ussing chambers and is recommended for use with both our EasyMount Ussing Chamber Systems or for other classical Ussing chamber systems.  Each DM MC6 also contains a single channel “dummy membrane” which is useful for testing the the functionality of voltage/current clamp.

The two types of input jacks: Current (I1, I2) and Voltage (V1, V2): all inputs only support male 2 mm pin tip.  The DM MC6 includes (1) AAA battery that will require replacing annually.

Connection from the voltage/current clamp to the DM MC6 is by a 4’ shielded cable with modular plugs part numbers 46-1000-4.

One DM MC6 input module is required for each clamp channel.
