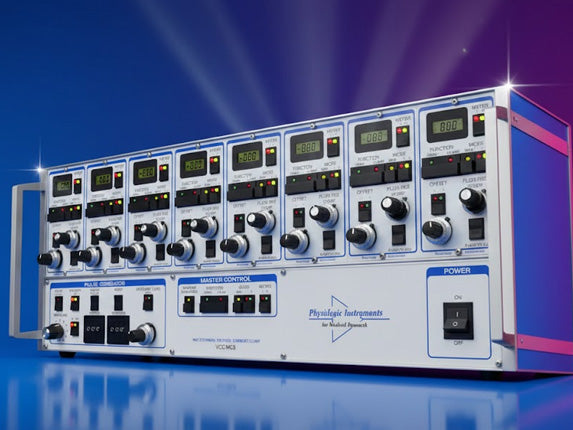

What Are Voltage / Current Clamps?
Voltage and current clamps are laboratory tools used to study how electrical signals move across a cell membrane. They are commonly used in neuroscience, physiology, and epithelial research to understand how ions flow through ion channels.
In simple terms, a clamp lets researchers control one electrical property of a cell while measuring another.
Why Voltage and Current Clamps Are Used
Cells generate electrical signals by moving ions (such as sodium, potassium, or chloride) across their membranes. These ions pass through specialized proteins called ion channels.
Voltage and current clamps allow researchers to:
-
Control electrical conditions at the cell membrane
-
Measure how ions move under those controlled conditions
-
Study how ion channels open, close, and respond to stimuli
The Basic Idea Behind a Voltage Clamp
A voltage clamp holds a cell’s membrane voltage at a fixed value chosen by the researcher. While the voltage is held constant, the instrument measures the current required to keep it there.
If ions try to change the voltage, the clamp injects an equal and opposite current to cancel that change. The injected current directly reflects how ions are moving across the membrane.
What a Voltage Clamp Controls and Measures
| The clamp controls | The clamp measures |
|---|---|
| Membrane voltage | Ionic current |
Why Controlling Voltage Matters
Many ion channels are voltage-dependent, meaning they open or close based on membrane voltage. If voltage is allowed to change freely, it becomes difficult to determine how individual channels behave.
By holding voltage constant, the voltage clamp:
-
Removes voltage as a variable
-
Allows direct measurement of ion flow
-
Makes current–voltage relationships easier to interpret
How a Voltage Clamp Works
-
One electrode measures the membrane voltage
-
A second electrode injects electrical current
-
The researcher sets a target voltage (“holding voltage”)
-
The system compares the actual voltage to the target
-
Any difference produces an error signal
-
Current is injected to remove that error
-
The injected current is recorded as data
Key Voltage Clamp Terms
| Term | Simple explanation |
|---|---|
| Holding voltage | Voltage you want the cell to stay at |
| Error signal | Difference between actual and desired voltage |
| Feedback | Automatic correction applied by the system |
| Ionic current | Flow of charged ions across the membrane |
A Brief Historical Note
The voltage clamp technique was developed in the 1940s and later used by Hodgkin and Huxley to explain how nerve impulses work. Their experiments formed the foundation of modern electrophysiology and earned a Nobel Prize.
Early voltage clamp experiments used very large cells, such as squid axons, because early electrodes were too large for smaller cells.
Common Voltage Clamp Configurations
Different experimental needs require different clamp designs.
Two-Electrode Voltage Clamp (TEVC)
This method uses:
-
One electrode to measure voltage
-
One electrode to inject current
It provides accurate voltage control but requires large cells.
Two-Electrode Voltage Clamp Summary
| Feature | Description |
|---|---|
| Number of electrodes | Two |
| Voltage accuracy | High |
| Cell size required | Large cells |
| Typical use | Large axons, oocytes |
Single-Electrode Voltage Clamp (SEVC)
A single electrode both:
-
Measures voltage
-
Injects current
This allows recording from smaller cells but introduces electrical limitations.
Patch Clamp (Single-Electrode, High-Resolution Method)
The patch clamp is a specialized single-electrode technique that:
-
Uses a smooth glass electrode tip
-
Forms a very tight seal with the membrane
-
Can measure currents from single ion channels
Patch Clamp Overview
| Feature | Description |
|---|---|
| Seal resistance | Extremely high (“gigaohm seal”) |
| Resolution | Single ion channels |
| Cell size | Very small cells |
| Common use | Channel-level measurements |
Common Sources of Error
Electrode Resistance
Electrodes are not perfect conductors. Resistance in the electrode can distort voltage measurements and current delivery.
Series Resistance Error
Some voltage is lost across the electrode itself. As a result, the actual cell voltage may be lower than what the instrument reports.
Capacitance Effects
Glass electrodes behave like small capacitors, which can distort fast electrical signals.
Space Clamp Limitations
Current from a single electrode does not affect all parts of a large or complex cell equally. This limits accuracy in cells with long extensions such as neurons.
Discontinuous Single-Electrode Voltage Clamp (SEVC-d)
This method alternates rapidly between:
-
Measuring voltage
-
Injecting current
Because voltage and current are not handled at the same time, certain errors are reduced. However, time resolution is lower and the system can become unstable if not carefully adjusted.
Summary of a Voltage Current Clamp
Voltage and current clamps are essential tools for studying how ions move across cell membranes. By controlling electrical conditions and precisely measuring ion flow, these techniques allow researchers to understand the fundamental electrical behavior of cells.
They form the foundation of modern electrophysiology and are widely used in neuroscience, epithelial transport studies, and ion channel research.
Frequently Asked Questions
1. What is a voltage clamp used for?
A voltage clamp is used to hold a cell’s membrane voltage at a fixed level while measuring the electrical current flowing across the membrane.
2. What does a current clamp do differently?
A current clamp injects a set amount of current into a cell and measures how the membrane voltage changes in response.
3. Why do researchers need to control voltage or current?
Controlling voltage or current allows researchers to isolate specific electrical behaviors of cells and study how ion channels function without interference from other variables.
4. What types of cells are studied with voltage clamps?
Voltage clamps are commonly used with nerve cells, muscle cells, epithelial tissues, and other electrically active cells.
5. What are ion channels?
Ion channels are proteins in the cell membrane that allow charged particles (ions) to move in and out of the cell, creating electrical signals.
6. Why can’t voltage and current be measured accurately without a clamp?
Without a clamp, voltage and current change at the same time, making it difficult to determine which changes are caused by ion movement and which are caused by voltage shifts.
7. What is a patch clamp?
A patch clamp is a high-resolution voltage clamp technique that can measure currents from very small areas of a cell membrane, including single ion channels.
8. Do voltage clamps damage cells?
When used properly, voltage clamps can record from cells for extended periods. However, poor electrode quality or unstable settings can stress or damage cells.
9. What limits the accuracy of voltage clamp measurements?
Accuracy can be affected by electrode resistance, electrical noise, cell size and shape, and how fast the electrical signals change.
10. Are voltage and current clamps used outside neuroscience?
Yes. They are widely used in epithelial transport research, cardiac physiology, pharmacology, and ion channel drug development.
